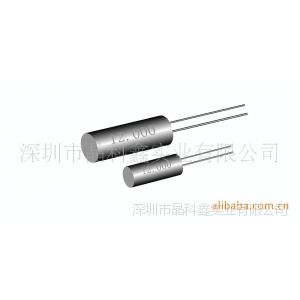

晶科鑫公司供应308C晶振,206A晶振,206B石英晶振、3*8圆柱晶振,频率32.768khz,或者频率范围从:30.000khz~350.000khz.
欢迎各位有需要晶振产品的朋友们前来咨询、洽谈、购买。晶科鑫公司提供一整套晶振电子解决方案,为您的产品保驾护航。
表晶 柱晶 部分参数如下:
Frequency:30.000KHz ~ 350.00KHz
Frequency Tolerance (at 25°C) :±20ppm ~ ±100ppm
32KHz-40KHz: 40Kohm Max
40KHz-60KHz: 30Kohm Max
60KHz-70KHz: 25Kohm Max
70KHz-200KHz: 22Kohm Max
ESR
200KHz-350KHz: 20Kohm Max
Turnover Temperature 25 ± 5°C
Frequency Temperature Curve -0.034(±0.006)ppm/°C2
Storage Temperature Range -55 °C to +125 °C
Operable Temperature Range -10 °C to + 60 °C, -20 °C to + 70 °C
Shunt Capacitance (C0) 2.0pF Typ
Dynamic Capacitance (C1) 4.0pF Typ
Driver Level (Typical) 1 μW Max
Load Capacitance(CL) 6.0pF ~ 12.5pF, or specify
Aging @25°C 1st year (Max) ±3ppm/year
